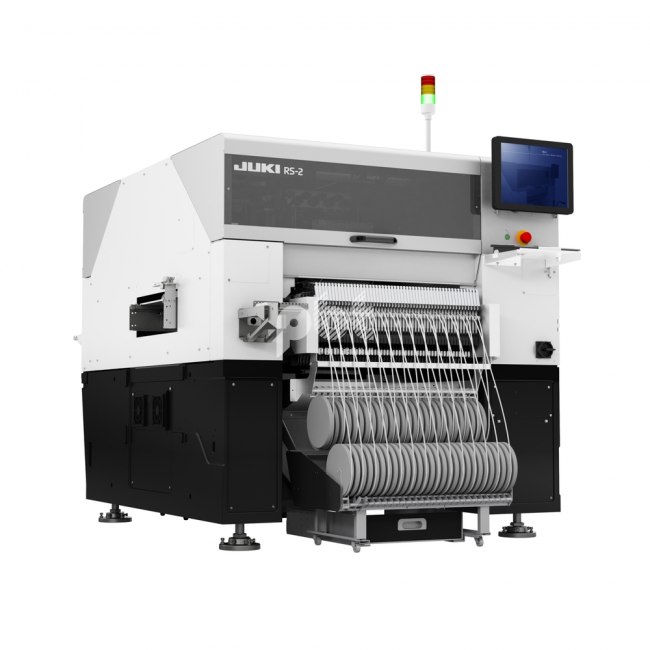

ASSEMBLY EQUIPMENTS: PICK & PLACE MONTER INSERTER - Inne sprzedam JUKI RS2 demo machine / used only for demonstration (M2609MVTRO01) Produkt: używany JUKI RS2ESC
RS-2 Main unit with camera system and standard
accessories
Unique Adaptive Head System
Up to 50.000 CPH ( optimum )
Automatic component height adjustment: up to 25 mm
For use with Feeder-Trolleys
PWB size:
50 x 50 mm (min)
up to 800 x 370 mm
On-The-Fly laser recognition head (LNC120-8)
Board offset correction camera - left (BOC-Camera)
Camera system VCS
Automatic nozzle change station
Support of large nozzle ATC (optional)
Nozzle No. 7500 = 8
Nozzle No. 7503 = 1
Nozzle No. 7504 = 6
Nozzle No. 7505 = 2
Nozzle No. 7506 = 2
Nozzle No. 7507 = 2
Nozzle No. 7508 = 1
Operational panel with touch screen (machine front side)
Feeder float detection sensor (front and rear)
Bad mark reading with board offset correction camera
Height measurement system HMS
Signal tower with buzzer
Operation Manual and Parts List (Electronic Format) Cena: do negocjacji |
