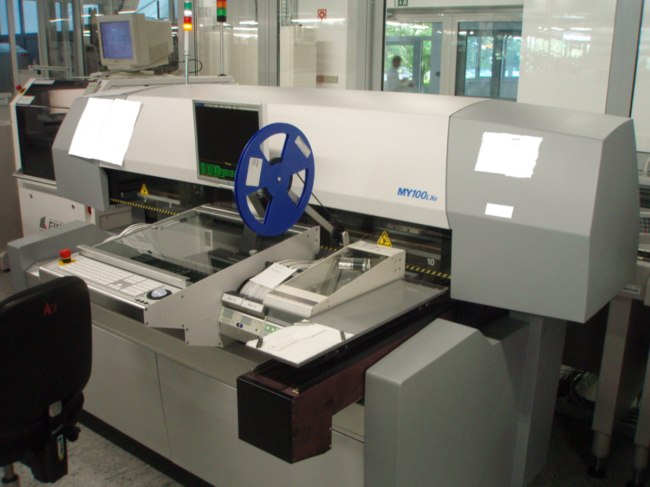

Dane produktu | | ASSEMBLY EQUIPMENTS: PICK & PLACE MONTER INSERTER - MYDATA sprzedam Mydata My100lxe-10 year 2012 with a lot of accesories(M2409DINHU01) Produkt: używany Working hours: 15.537 hours
Condition: Good working condition, proper regular maintenance was carried out on the machine, LOG history file available, currently in usage
Service manual, User's guide available Cena: do negocjacji |
| Opis przedmiotu/usługi:
| Feeders coming with the machine:
4,7mm 57pcs
4mm 58pcs
Flip chip 8pcs
3,7mm 26pcs
5,4mm 5pcs
11-13mm 6pcs
7,5-9,5mm 4pcs
Magazines:
8 magazines, 1 dip type from the 8
20 small reel holders, mountable in the magazine
2 small reel holders, mountable in the magazine
1 Tray unit |
