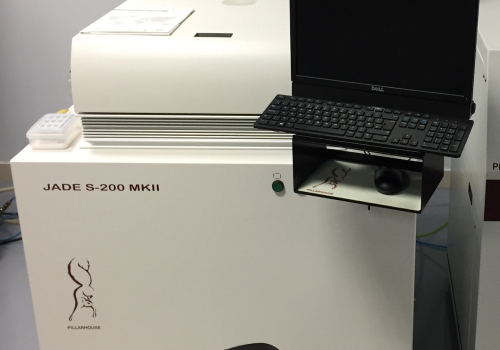

 | SOLDERING SYSTEM: WAVE, VAPOR PHASE, SELECTIVE, REFLOW - Inne sprzedam Pillar House Jade MK2 year 2022 like new (M2308SOWPL01) Produkt: używany Konfiguracja standardowa:
Integral Machine Mounted Monitor and PC
Inerted Nitrogen System
Auto Solder Top-up (Wire Feed) & Solder Level Detect
Single Titanium Drop Jet Fluxer - 200 Micron
Internal Fume Extraction
Colour Programming Camera
Universally Adjustable Tooling Carriers
508mm (X) x 457mm (Y) (20” x 18”) Maximum PCB Handling Size
Manual Fiducial Correction System
PillarPAD Offline Programming Package
Thermal Nozzle Calibration System using Integrated Setting Camera (requires manual correction)
PillarCOMMX Windows Software
Solder Wave Height Measurement
Process Viewing Camera
Multilevel Password Security System
Lead-Free Capability
Set of AP Solder Tips (2.5mm, 3mm, 3.5mm, 4mm, 5mm, 6mm, 8mm, 10mm & 12mm)
Standard Production Data Export (CSV File with Configurable Board Process Data)
Accessory Kit
Plus dodatkowe wyposażenie:
Top Side IR Pre-Heat
Closed Loop Thermocouple Top-Side Pre-Heat Control
Initial Lead-Free Solder Fill – SAC305
Nitrogen Analyser - (Measures the oxygen content within the incoming nitrogen into machine).
Real Time PCB Warp Correction System
X, Y & Z Axis Encoders
Vacuum Packaging (Jade MKII) Cena: do negocjacji |
