| Dane produktu |  | ASSEMBLY EQUIPMENTS: PICK & PLACE MONTER INSERTER - SAMSUNG sprzedam Samsung SM421, vintage 2007 (M2508KEENL01) Produkt: używany Cena: do negocjacji |
| | Opis przedmiotu/usługi:

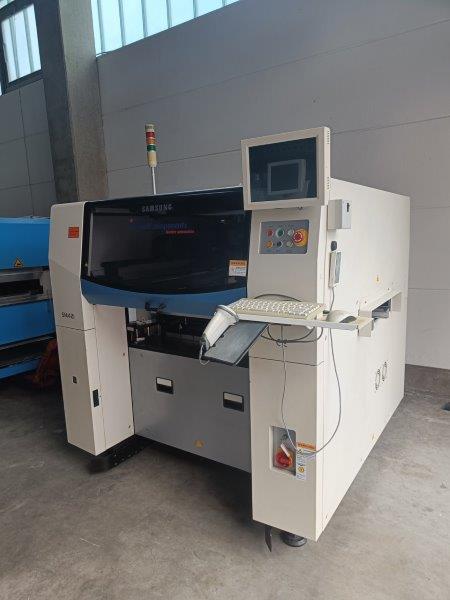

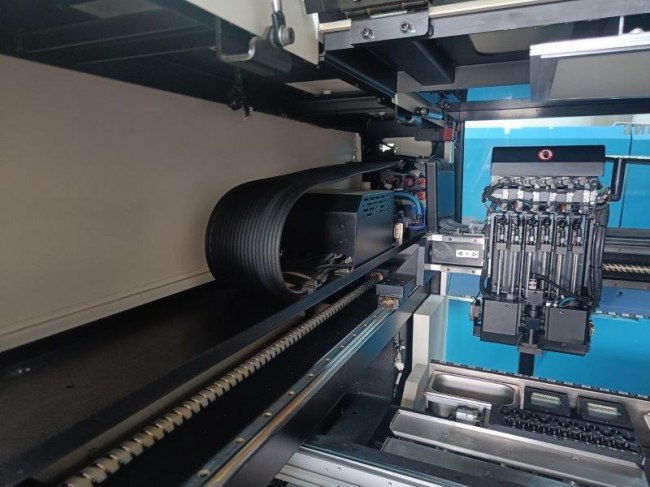

| Samsung SM421, vintage 2007, first installation 2009, pictures attached,
1x trolley included
No feeders

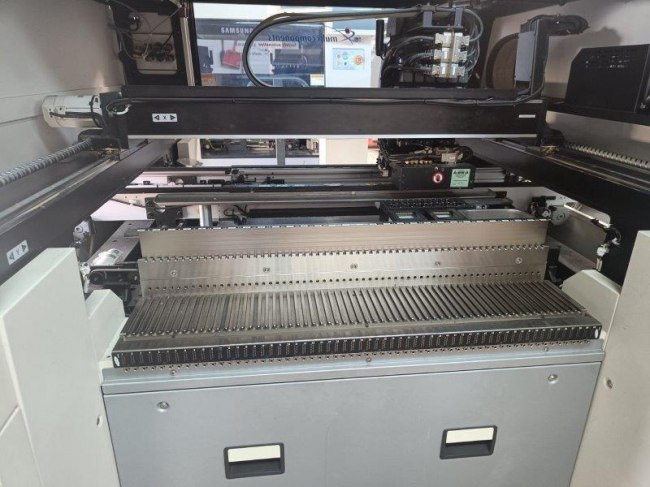

Rear side fixed feeder bank
Ready for intelligent feeder system, but the dongle / software has to be purchased by the customer himself (ca. 3K), of course not needed if non-IT feeders are used.
Camera 1: FOV 35M (I Type)
Camera 2: FOV 45M (I Type)
Vision Recognition System (Fiducial Camera, Flying Vision)

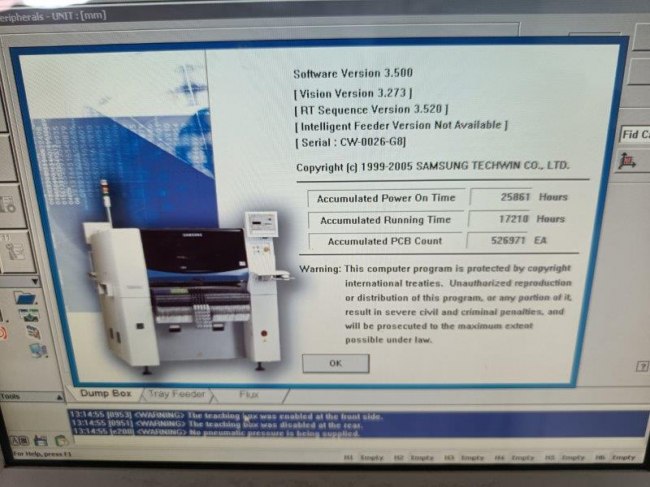

Software MMI: 3.500, Vision: 3.273
PCB: 50 x 40 mm - 610 x 460 mm
Max. component height: 12 mm
Windows XP Embedded
Upgraded from Venturi to vacuum pump. Pump not included
Has been fully checked by a Samsung engineer and is in good condition. załącznik: | | Galeria: | |
